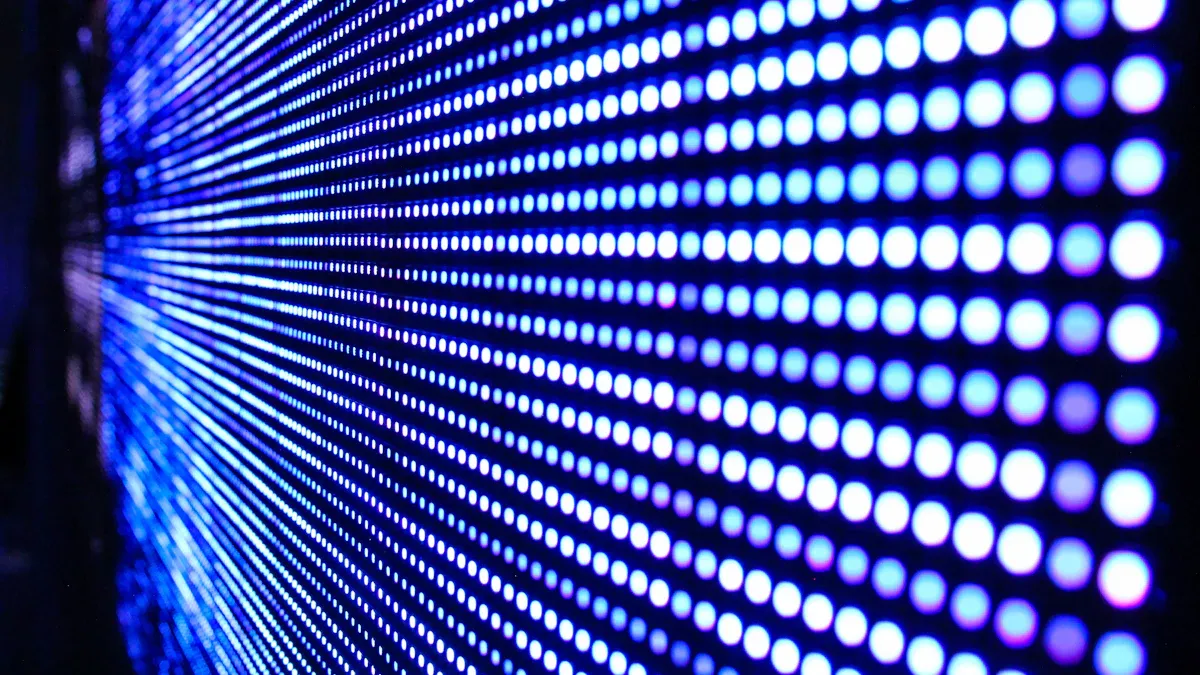

Comparing different types of LED wall panels

The video wall technology landscape features two dominant options: Direct View led video walls and lcd video walls. While LCDs currently constitute nearly 58% of video wall displays, Direct View LED technology shows the fastest market growth. This comparison guide evaluates these led wall panels. Selecting the ideal display technology, whether it's a specific LED Panel Light from a leading LED Panel Light Manufacturer or other led light fixtures from various led light manufacturers, hinges on key factors. These factors include viewing distance, ambient light, content requirements, and budget.

What Are Direct View LED Video Walls?

Direct View LED (DVLED) video walls represent the pinnacle of large-format display technology. Unlike LCDs that use a backlight, these displays feature thousands of individual light-emitting diodes that produce their own light. This fundamental difference is the source of their primary advantages and defines their core technological variations.

The Core Technology Explained

The construction of the LED modules themselves has evolved, leading to three main types of traditional led video walls. Each offers a distinct balance of performance, durability, and cost.

Surface-Mount Device (SMD)

SMD is the most common technology. It packages red, green, and blue diodes into a single component soldered onto the module's surface. This design is cost-effective and simplifies maintenance for individual pixels.

Chip-on-Board (COB)

COB technology mounts bare LED chips directly onto the circuit board and covers them with a protective layer. This allows for finer pixel pitches, a wider viewing angle, and enhanced durability against impacts and moisture.

Glue-on-Board (GOB)

GOB is a hybrid approach. It starts with standard SMD modules and adds a layer of transparent glue over the entire surface. This process significantly increases robustness, making the panels resistant to accidental damage.

Tech Tip: The choice between SMD, COB, and GOB directly impacts a display's durability and ideal use case. COB offers the best protection and finest resolution, while GOB provides a rugged upgrade for standard SMD panels.

Key Advantages of Direct View LED

The modular nature of led video walls provides several key benefits over monolithic displays.

A Truly Seamless Canvas

Individual cabinets fit together with no visible bezels or seams. This creates a completely uniform and seamless display, delivering a powerful immersive viewing experience for any content.

Superior Brightness and Contrast

DVLED displays offer exceptional high brightness and contrast. Indoor models can feature a brightness of 600 nits with a 6,500:1 contrast ratio, while some large format led displays reach 1600 nits. This ensures vibrant, clear images even in environments with high ambient light.

Unmatched Scalability and Creative Freedom

The modular design provides near-limitless scalability. Planners can construct led wall panels of any size or aspect ratio, including curved or unconventional shapes, offering immense creative flexibility.

Exceptional Durability and Longevity

Professional-grade DVLED displays are built for continuous operation. They have an expected lifespan between 50,000 and 100,000 hours, which translates to over a decade of reliable performance in many commercial settings. This long-term reliability makes them a sound investment.

Key Disadvantages of Direct View LED

Despite their impressive performance, DVLED displays come with important trade-offs.

Higher Initial Financial Outlay

The advanced technology and manufacturing processes make DVLED a significant upfront investment, often costing more per square foot than LCD alternatives.

The Pixel Pitch vs. Viewing Distance Dilemma

Fine pixel pitch displays deliver higher resolution but cost more. Selecting the right pitch requires a careful calculation of the minimum viewing distance to ensure a smooth image without visible pixelation.

Installation and Maintenance Complexity

Proper installation demands precise alignment, structural support, and specialized calibration. While durable, repairing damaged modules can be more complex than swapping an LCD panel.

Greater Power Consumption

While individual LEDs are efficient, a large wall can consume considerable energy, especially when displaying content with high brightness. Power consumption is dynamic and increases with brighter content, potentially exceeding that of a comparable LCD screen.

Understanding LCD Video Wall Panels

LCD video walls are a popular and established technology for creating large-scale digital canvases. Unlike Direct View LED, where each pixel is its own light source, LCD panels rely on a separate backlight to illuminate the image. This fundamental difference in operation defines their unique strengths and weaknesses.

How LCD Technology Functions

An LCD panel is a multi-layered system that manipulates light to create images. The process requires several key components working in unison.

The Role of LED Backlighting in LCDs

Liquid crystals do not produce their own light. An LED backlight unit (BLU) provides the essential illumination. This light passes through a complex sandwich of layers to form the final picture.

• Backlight Unit (BLU): This layer serves as the light source, shining through the liquid crystal layer to enable image formation.

• Vertical Polarizer: A film filters the light, allowing only vertically oriented light waves to pass through.

• TFT Substrate (Thin-Film Transistor): This glass base contains millions of microscopic transistors. Each transistor controls a pixel, telling the liquid crystals whether to block or pass light.

Edge-Lit vs. Direct-Lit Displays

LCDs use two primary backlighting methods. Edge-lit displays place LEDs along the perimeter of the screen, which allows for a thinner panel design. Direct-lit displays position LEDs in a grid directly behind the screen, providing better brightness uniformity but resulting in a thicker profile.

Understanding Bezels and Seams

Every LCD panel has a border, or bezel, around its active display area. In a multi-display configuration, these bezels create visible grid lines. Modern lcd thin bezel video walls have dramatically reduced this gap, with some models featuring combined bezel-to-bezel widths as narrow as 0.9mm to 1.8mm.

Key Advantages of LCD

LCD technology offers compelling benefits, particularly for specific applications and budgets.

Excellent Resolution for Close Viewing

LCDs excel at delivering high-resolution images. A standard 55-inch 4K panel packs over eight million pixels into a compact space, making it ideal for environments where viewers are close to the screen, such as boardrooms or control centers.

More Accessible Upfront Cost

The mature manufacturing process for LCDs makes them a more budget-friendly option. A single 55-inch commercial LCD video wall panel can cost around $1,584, making the initial investment for a multi-display setup significantly lower than a comparable DVLED wall.

Simplified Serviceability and Panel Swapping

Maintaining an LCD wall is often straightforward. If a single panel fails, a technician can typically swap it out with minimal disruption to the rest of the multi-display array. This simplifies repairs and reduces downtime.

High Energy Efficiency

LCDs are generally more energy-efficient than their DVLED counterparts, especially when displaying bright or white content. Their consistent power draw in a multi-display mode makes energy cost calculations more predictable.

Key Disadvantages of LCD

Despite their advantages, LCDs have inherent limitations that users must consider.

The Inescapable Grid of Bezels

Even the most advanced lcd thin bezel video walls cannot eliminate seams entirely. The grid created by the bezels can interrupt content, making it less suitable for fully immersive experiences. This is a key differentiator from seamless led wall panels.

Performance in High Ambient Light

Standard LCDs can struggle in brightly lit spaces. While some high-brightness models can reach up to 6,000 nits, their performance can wash out in direct sunlight. The contrast also diminishes in these conditions, affecting image vibrancy.

Risk of Image Retention (Burn-In)

Displaying a static image for extended periods can lead to image retention, where a faint ghost of the image remains visible. This is a concern for applications running static content 24/7, such as in a multi-display mode for security monitoring.

Maintaining Color and Brightness Uniformity

Achieving perfect color and brightness consistency across a multi-display wall of lcd thin bezel video walls is challenging. Over time, individual panels can age differently, requiring periodic recalibration to maintain a uniform appearance in a multi-display mode.

Critical Comparison: Key Differentiators in Video Wall Technology

Choosing the right video wall technology requires a deep dive into the specific performance metrics that define the viewing experience. This comparison guide examines the critical differences between Direct View LED and LCD across visual quality, environmental suitability, and long-term operational demands.

Visual Performance and Image Quality

The ultimate goal of any video wall is to deliver stunning visuals. How each technology achieves this varies significantly.

Resolution, Pixel Density, and Clarity

Resolution refers to the total number of pixels in a display. LCD panels offer a fixed, high resolution (e.g., 4K) in a standard panel size. This creates exceptional clarity for close-up viewing. A multi-display LCD setup increases the overall canvas size but not the pixel density of each panel.

Direct View LED resolution depends on the cabinet size and its pixel pitch. Finer pixel pitches pack more LEDs into a smaller area, increasing pixel density and enabling closer viewing distances. This gives DVLED superior scalability, where designers can build a true 4K or 8K wall of any dimension without being constrained by fixed panel sizes.

Brightness (Nits) and Contrast Ratios

Brightness, measured in nits, is a major differentiator.

• Direct View LED: This technology excels in brightness. DVLED panels produce their own light, offering powerful high brightness and an extremely high contrast ratio. This ensures colors appear vivid and are easily visible even in direct light.

• LCD: Standard LCDs have lower native brightness and contrast. While high-brightness models exist, their backlights can struggle to compete with intense ambient light, sometimes resulting in a washed-out image.

Advanced DVLED technologies deliver an extraordinary contrast ratio. This capability produces deep, true blacks and brilliant highlights, enhancing the overall image quality.

Color Gamut, Accuracy, and Reproduction

Color gamut defines the range of colors a display can produce. Premium DVLED displays generally offer a wider color gamut than LCDs. Top-tier LED options can achieve over 120% coverage of the Rec.709 color space, delivering richer and more saturated colors. The best display quality depends on accurate color reproduction.

While high-end LCDs with Quantum Dot technology offer excellent color, leading LED technologies often push the boundaries further, providing a more vibrant and lifelike visual experience.

Black Levels and Dynamic Range

The ability to produce true black is fundamental to image quality.

• Direct View LED: Since each pixel can be turned off completely, DVLED achieves perfect black levels. This creates an infinite contrast ratio and exceptional dynamic range, making details in dark scenes pop.

• LCD: LCDs use a backlight that is always on. Even with local dimming technologies, some light bleed is inevitable, resulting in grayish blacks and a lower dynamic range compared to DVLED.

Physical and Environmental Considerations

The physical environment where the wall will be installed plays a crucial role in technology selection.

Calculating Optimal Viewing Distance

The optimal viewing distance ensures viewers see a smooth image, not individual pixels. For led video walls, a simple formula helps determine this distance.

Optimal Viewing Distance Rule of Thumb:

• Distance (in feet) = Pixel Pitch (mm) x 8

• Distance (in meters) = Pixel Pitch (mm) x 2.5

For LCDs, the high pixel density of individual panels makes them suitable for very close viewing. However, the bezels in a multi-display configuration become more apparent at close range.

The Impact of Ambient Light on Visibility

Ambient light can make or break a display's performance. The superior brightness of DVLED makes it the clear winner for bright environments like atriums, retail storefronts, and outdoor venues. LCDs perform best in controlled indoor lighting where their lower brightness is sufficient.

Indoor vs. Outdoor Application Suitability

For outdoor use, displays must withstand the elements. Ingress Protection (IP) ratings classify a device's resistance to dust and water.

• Outdoor DVLED: These displays are specifically engineered for outdoor use, typically requiring an IP65 rating or higher. This ensures they are fully dust-tight and protected against water jets, making them ideal for rain and harsh weather.

• Outdoor LCD: Specially designed outdoor LCDs also exist, often with an IP54 rating or higher. However, they require more complex enclosures to protect the sensitive electronics from moisture and temperature extremes. For areas with high-pressure water jets, an IP69K rating might be necessary.

Physical Robustness and Lifespan

DVLED displays, particularly those with COB or GOB technology, offer excellent physical durability against impacts. LCDs, with their glass surfaces, are more fragile. In terms of lifespan, the difference is significant. Professional-grade DVLED displays are engineered for continuous, long-term operation.

Installation, Calibration, and Maintenance

The final considerations involve the practicalities of deploying and maintaining the video wall.

Structural and Mounting Requirements

Both technologies require professional installation. LCD multi-display walls need precision mounts to minimize bezel gaps. DVLED walls require a robust support structure to handle the weight and ensure perfect cabinet alignment for a seamless finish. The scalability of DVLED allows for more creative mounting, including curves and unconventional shapes.

The Initial Calibration Process

To achieve a uniform image, every panel in a video wall must be calibrated for color and brightness.

• LCD: Calibrating a multi-display LCD wall involves matching each panel to a baseline to create a consistent canvas.

• DVLED: The calibration process is more intricate, ensuring that every module, and often every pixel, matches its neighbors perfectly. This process is critical for achieving a truly seamless image.

Long-Term Service and Repairability

Serviceability is a key factor in total cost of ownership.

• LCD: If a panel in a multi-display array fails, a technician can often swap it out with a replacement unit relatively easily.

• DVLED: Repair can be more complex. Depending on the issue, a technician might replace individual pixels, a single module, or an entire cabinet. Access for service must be planned during installation.

Expected Lifespan and Reliability

Reliability over time is a major strength of DVLED technology. The operational lifespan directly impacts the return on investment.

DVLED displays are rated for over 100,000 hours of use before reaching half-brightness. LCDs, reliant on backlights that degrade over time, typically offer a lifespan between 30,000 and 60,000 hours. This makes DVLED a more durable long-term investment for 24/7 applications.

Financial Breakdown: Comparing LED Wall Panels on Cost

A comprehensive financial analysis extends beyond the initial price tag. Decision-makers must evaluate both the upfront investment and the long-term Total Cost of Ownership (TCO) to determine the true value of their video wall solution.

Analyzing the Initial Investment

The upfront cost is often the most significant factor in any project budget. It comprises the display hardware, processing equipment, and professional installation.

Cost Per Panel vs. Cost Per Square Foot

LCD and DVLED technologies have different pricing structures.

• LCD: Costs are typically calculated per panel. A standard commercial 55-inch panel has a fixed price, making it easy to budget for a specific array size (e.g., 2x2 or 3x3).

• DVLED: Pricing is more commonly based on cost per square foot. This cost is heavily influenced by the pixel pitch; finer pitches require more LEDs and intricate manufacturing, leading to a higher price.

Essential Controller and Processor Costs

Every video wall requires a controller or processor to manage content across multiple screens. The cost and complexity of these devices vary significantly. A simple LCD controller might be inexpensive, while advanced processors for large or creative led wall panels command a higher price. The required features, such as 4K support or multi-source switching, also impact the final cost.

Installation and Labor Expenses

Professional installation is non-negotiable for a flawless result. Labor costs include mounting, wiring, and calibration. DVLED installations can sometimes be more expensive due to the need for precise cabinet alignment and robust structural support.

Calculating Total Cost of Ownership (TCO)

TCO provides a more holistic financial picture by including ongoing operational expenses over the display's entire life.

TCO Formula: Initial Investment + Energy Costs + Maintenance Costs - Salvage Value = Total Cost of Ownership

Long-Term Energy Consumption

Energy usage is a critical long-term expense. LCDs have a relatively consistent power draw determined by their backlight. DVLED power consumption is dynamic; it uses less energy displaying dark content and more energy for bright, vibrant images. Over years of use, these differences can significantly affect operational budgets.

Ongoing Maintenance and Repair Budgets

Maintenance strategies differ between the two technologies. Swapping a faulty LCD panel is a relatively simple and predictable expense. Repairing a DVLED display might involve replacing individual pixels, a module, or a cabinet, which can vary in cost and complexity.

Lifespan and Future Replacement Cycles

The expected lifespan directly influences TCO. DVLED displays offer a longer operational life, often exceeding 100,000 hours. LCDs typically last between 30,000 and 60,000 hours. A longer lifespan means fewer replacement cycles, making DVLED a more cost-effective investment over a decade or more despite its higher initial cost.

Exploring Advanced Video Wall Technology

The world of large-format displays continues to evolve. Beyond the established options, emerging technologies like MicroLED and OLED are pushing the boundaries of image quality and application potential. This advanced video wall technology promises even more immersive and dynamic visual experiences.

The Rise of MicroLED

MicroLED represents a significant leap forward, combining the best attributes of both DVLED and OLED while improving upon them.

What is MicroLED?

MicroLED technology uses microscopic, inorganic light-emitting diodes as individual pixels. Like DVLED and OLED, each pixel is self-emissive, meaning it produces its own light and can be turned off completely. This construction allows for the creation of modular, seamless displays with exceptional performance characteristics.

Advantages Over Traditional LED

MicroLED offers substantial benefits over traditional led video walls. Its use of smaller RGB diodes enables significantly tighter pixel pitches and higher pixel densities, resulting in superior resolution and clarity for closer viewing. This advancement also leads to major gains in efficiency. For instance, some MicroLED displays demonstrate approximately 45% lower power consumption compared to equivalent OLED panels. Specialized driver circuits minimize power leakage, making the technology highly efficient.

OLED for Video Walls

OLED (Organic Light-Emitting Diode) is another self-emissive technology, well-known in the consumer television market, that also finds a place in specific video wall applications.

How OLED Differs

OLED technology uses organic compounds that light up when an electric current is applied. This differs fundamentally from the inorganic diodes used in DVLED and MicroLED. The primary distinctions are clear when compared directly.

Use Cases and Limitations

OLED's unique properties define its ideal applications and its constraints.

• Advantages: The technology produces exceptional contrast ratios with true black levels. Its structure also allows for the creation of ultra-thin and even flexible or transparent displays, opening up unique architectural possibilities.

• Limitations: OLED panels typically have lower peak brightness than DVLED, making them less suitable for environments with high ambient light or direct sun exposure. They also carry a risk of permanent image retention (burn-in) with static content and often come at a higher cost.

Application-Specific Recommendations for LED Video Walls

Selecting the right video wall technology depends entirely on the application. The environment, content, and audience expectations dictate whether Direct View LED or LCD is the superior choice. This section provides specific recommendations to guide the decision-making process for various professional settings.

Ideal Scenarios for Direct View LED

Direct View LED excels in applications demanding large scale, high impact, and seamless visuals. Its superior brightness and durability make it the premier choice for challenging environments.

Large Auditoriums and Event Venues

Large venues require displays that deliver a powerful visual experience to every seat. DVLED technology provides the scale and brightness needed to captivate large audiences. The seamless nature of these displays ensures an uninterrupted view from any angle. For example, the Shiseido Global Innovation Center features a stunning 16K by 4K Crystal LED wall, creating an immense and immersive canvas. Similarly, the IBM Watson Center uses a massive 34-foot by 16-foot DVLED display to deliver jaw-dropping presentations with exceptional clarity and color. Typical indoor led video walls for auditoriums range from 5x3 feet to larger 13x6 feet formats, with fine pixel pitches ensuring sharp images even for distant viewers.

High-Impact Digital-Out-of-Home (DOOH)

DOOH advertising demands displays that can compete with direct sunlight and capture attention from a distance. DVLED is the only technology that can deliver the necessary brightness and weather resistance for this application. These displays must be bright, durable, and easily visible day or night.

Tech Tip: For outdoor DOOH, a high brightness level and an appropriate pixel pitch are critical for visibility. The display must also have a high IP rating (IP65 or greater) to withstand weather conditions.

Broadcast Studios and Virtual Production

Modern broadcast and virtual production studios rely on DVLED for creating realistic digital backdrops. The technology's ability to produce perfect black levels, a wide color gamut, and high refresh rates prevents on-camera artifacts like moiré patterns. This allows studios to generate immersive virtual environments that look seamless and convincing to the television audience. The modularity of led wall panels also enables the construction of curved walls and ceilings for complete virtual sets.

Architectural and Experiential Installations

Designers use DVLED to transform physical spaces into dynamic environments. The flexibility of this video wall technology allows it to be integrated into building facades, lobbies, and artistic installations. Planners can create displays of any shape or size, including curves and transparent screens. This freedom enables the creation of unique, branded moments that engage visitors and create a memorable experience. A thoughtful video wall system design is crucial for these custom projects.

Ideal Scenarios for LCD Video Walls

LCD video walls remain a powerful and cost-effective choice for applications where high resolution at close viewing distances is a priority and minimal seams are acceptable.

Corporate Boardrooms and Meeting Spaces

Corporate boardrooms require displays with excellent clarity for detailed presentations, data visualization, and video conferencing. LCD panels offer high pixel density (4K resolution in a standard 55-inch panel), making text and fine details sharp and legible for people sitting close to the screen. A major private company in Ecuador, for instance, equipped its 48-person executive boardroom with a Christie LCD video wall for presenting financial reports and conducting training. These video wall solutions provide a professional and effective communication tool at an accessible price point.

Retail and Quick-Service Restaurant (QSR) Displays

In retail and QSR environments, LCD video walls are an effective tool for digital signage, menu boards, and promotional content. The upfront cost is lower than DVLED, allowing businesses to deploy multiple displays across various locations. The high resolution ensures that product images and menu text are crisp and appealing to customers. While bezels are present, they are often acceptable for displaying partitioned content like individual menu items or advertisements.

Security and Network Operations Centers (NOCs)

NOCs and security control rooms require 24/7 monitoring of multiple data streams. LCD video wall solutions are ideal for this task due to their high resolution and cost-effectiveness. Technicians can view detailed dashboards, camera feeds, and network maps with exceptional clarity. A typical NOC setup includes:

• A primary video wall: This serves as the main hub, displaying critical alarms, performance dashboards, and incident reports in real time.

• Corner displays: These are often dedicated to external information like news and weather feeds.

• Multi-monitor workstations: Each technician uses several monitors for managing specific tasks, ticketing systems, and communication.

Public Transportation and Information Hubs

Airports, train stations, and bus terminals need to convey large amounts of information clearly and efficiently. LCD video walls are perfect for displaying arrival/departure boards, wayfinding maps, and public announcements. The high pixel density makes detailed schedules easy to read, and the lower initial cost makes it feasible to install large arrays of screens throughout a facility. The consistent power draw of LCDs also simplifies energy budgeting for these large-scale public installations.

The video wall market is expanding, with a projected 9.4% CAGR driven by the demand for a powerful visual experience. The right technology choice is critical for success.

For large-scale applications demanding superior brightness and a completely seamless canvas, Direct View LED is the premier solution. For budget-sensitive projects requiring high resolution at close proximity where minimal seams are acceptable, LCD remains a strong contender.

Ultimately, the ideal decision rests on a careful evaluation of the specific environment, content strategy, and financial plan. Engaging with a display integration specialist ensures the final investment perfectly aligns with project goals.

FAQ

What is pixel pitch and why does it matter?

Pixel pitch measures the distance in millimeters between the centers of a display's pixels. This measurement is critical because it determines the screen's resolution and optimal viewing distance. A smaller pixel pitch number indicates higher pixel density, enabling clearer images at closer viewing ranges.

Which technology is better for interactive touch applications?

LCD panels are generally the superior choice for interactive touch functionality. Their solid, flat glass surface provides a durable and reliable foundation for adding touch overlays. While some ruggedized DVLED options exist, the inherent structure of LCDs makes them a more practical solution for touch interactivity.

How long do video walls typically last?

Lifespan varies significantly between technologies.

• Direct View LED: Professional-grade displays often have a rated life of 100,000 hours.

• LCD: Commercial panels typically offer a lifespan between 30,000 and 60,000 hours.

DVLED's longer operational life makes it a durable long-term investment for continuous use.

Is video wall calibration a one-time process?

No, calibration is an ongoing requirement. While initial calibration creates a uniform image, individual panels age differently over time, causing shifts in color and brightness. Periodic recalibration is essential to maintain a seamless and visually consistent appearance across the entire video wall throughout its lifespan.

What is the main difference between MicroLED and DVLED?

MicroLED represents an evolution of Direct View LED technology. The key difference is the size of the light-emitting diodes. MicroLED uses microscopic, self-emissive pixels. This allows for significantly finer pixel pitches, higher resolutions, and greater power efficiency compared to traditional DVLED panel constructions.

Can you mix different panel models in one video wall?

Expert Advice: It is strongly recommended to use identical panel models from the same manufacturing batch for a single video wall. Mixing models, even from the same brand, can result in noticeable differences in color, brightness, and aging, making a truly uniform image impossible to achieve.

See Also

Top LED Ceiling Light Manufacturers: A Comprehensive Comparison Guide

LED Versus Traditional Ceiling Lights: Which Is the Better Choice?

Seamless Installation: 10 Essential LED Slim Panel Lights for 2026

Essential Features for Modern LED Flat Panel Lights You Need

LED Panel Versus Troffer Lights: Differences, Benefits, and Ideal Applications
