The Essential Handbook for Choosing and Installing LED Wall Panels
Choosing the right LED wall panels can make a big difference, especially when it comes to panelling with LED lights. People notice that energy-efficient lighting saves money while enhancing the brightness and aesthetics of rooms. Many desire smooth panels with LED lights for their homes and offices. Experts at Guangdong Liyinled Lighting Co., Ltd provide helpful advice to ensure safe and affordable results. With easy steps, they make the process simple for everyone.
Key Takeaways
Picking the right LED wall panels makes rooms brighter and uses less energy. This helps spaces look nicer.
Think about why you need the LED wall and where it will go. Make sure it works for you and fits the area.
Planning your budget is very important. Include costs for putting it in, keeping it working, and how much energy it uses. This gives you a full idea of the money needed.
Clean the panels often and update their software. This helps them work well and last longer.
Always ask a trusted brand like Guangdong Liyinled Lighting Co., Ltd for good products and expert help.

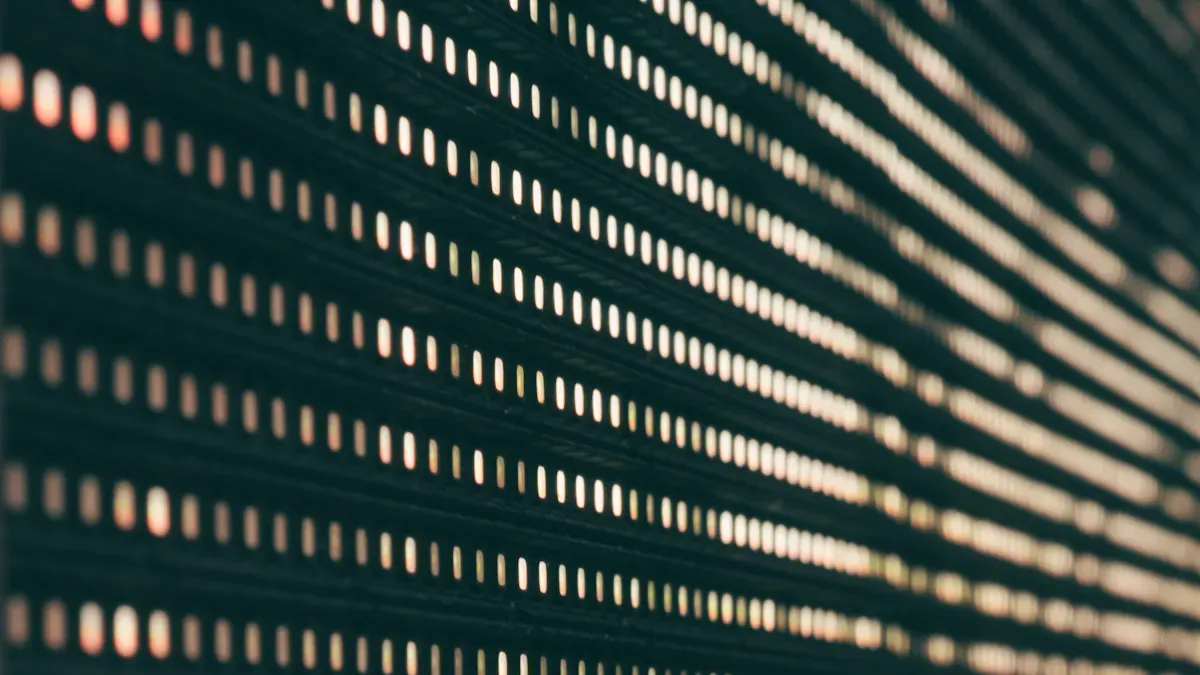

LED Wall and Panel Light Basics
What Is an LED Wall?
An LED wall is made from many LED panels. These panels join together to make one big screen. You can see LED walls in malls, meeting rooms, and events. The panels show pictures, videos, or designs. LED walls are bright and clear. They are great for ads, talks, and fun shows. You can pick the size and shape you need.
LED Panel Light Features
Guangdong Liyinled Lighting Co.,Ltd makes LED panel lights. These lights look nice and work well. Their LED Panel Light models, like APL-PB-2508E-Recessed and APL-PB-2508E-Surface, fit many places. The lights use aluminum and PC, so they last long. You can pick the size, shape, power, and color you want. The company lets you choose your own brand and box.
Tip: Customizing helps match lights to your space and brand.
Here is a table with key features to think about:
Feature | Description |
|---|---|
Energy Efficiency | Uses less power, saves money. |
Brightness | Lights up fast, good for working. |
Color Temperature | Gives warm or cool light for different moods. |
Installation Options | Can go in, on, or hang from ceilings. |
Dimming Capability | Lets you make the light brighter or dimmer. |
Smart Technology | You can use apps or voice to control it. |
Types and Applications
LED wall panels and LED panel lights do different jobs. LED wall panels make big screens for showing things. LED panel lights light up rooms.
Here are some types and how people use them:
Type | Description | Typical Use Cases |
|---|---|---|
Surface Mounted LED Panels | Go on ceilings or walls, good for low ceilings. | Offices, stores, homes |

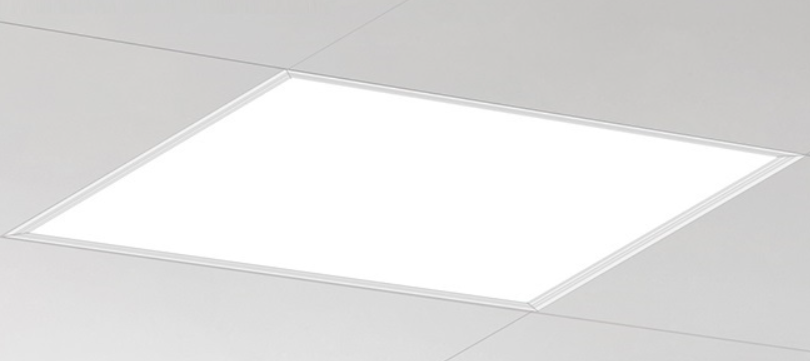

Recessed LED Panels | Hide inside ceilings for a neat look. | Meeting rooms, shops |
LED Troffer Panel Lights | Made for drop ceilings. | Workplaces and offices |
LED Flat Panel Lights | Thin and stylish, fit in small spaces. | Business places |
LED Suspended Panel Lights | Hang from ceilings, shine up and down. | Fancy areas |
Guangdong Liyinled Lighting Co.,Ltd has many choices. Their lights meet rules and what clients want. People can pick the best panel for their room, whether it is for a home or office.
Assessing Your LED Wall Needs
Purpose and Location
People often start by thinking about why they need an LED wall and where they want to put it. Some want a bright display for a meeting room. Others need a colorful wall for a store or event. The right spot makes a big difference. He or she should look at the type of installation, the size and number of displays, and how easy it is to keep things working well. Here is a simple table to help with planning:
Factor | Description |
|---|---|
Type of Installation | Modular panels give more choices. Pre-assembled walls go up faster. |
Size and Number of Displays | The goal and budget decide how big and how many panels to use. |
Maintenance and Replacement | Good planning keeps the wall working longer and saves money on repairs. |
Tip: He or she should always check if the space has enough room and power for the panels.
Size and Resolution
The size and sharpness of the LED wall matter a lot. A small meeting room needs a different setup than a big outdoor sign. The right pixel pitch helps people see clear images from the right distance. Here is a quick guide:
Pixel Pitch (mm) | Optimal Viewing Distance (m) | Visual Performance Impact |
|---|---|---|
2 | 4 | Clear for close-up content |
10 | 20 | Best for far-away viewing |
40 | 80 | Great for huge outdoor displays |
He or she should pick the size and resolution that fit the room and the people who will look at the wall.
Budget Planning
Money always matters. The price for LED wall panels can change a lot. Size, pixel pitch, brand, and how hard it is to install all play a part. Here are some things to think about:
Backdrop panels cost about USD 1,200 to 3,000 per square meter.
Floor screens cost about USD 900 to 2,000 per square meter.
A small studio setup can cost from USD 20,000 to 75,000.
Maintenance, energy use, software, and repairs add to the total cost.
He or she should plan for both the first price and the cost to keep the wall running. Picking a trusted brand like Guangdong Liyinled Lighting Co.,Ltd helps make sure the wall lasts and works well.
Choosing LED Wall Panels and Accessories
Comparing Specifications
It is important to check the main specs before picking LED wall panels. These details help make sure the panels fit the project and last longer. Some specs are more important than others. Here is a table that shows what to look for:
Specification | Details |
|---|---|
Pixel Pitch | Smaller pixel pitch (2.5mm to 4mm) gives sharper images and text. |
Brightness | Indoor panels need 500-1,000 nits. Outdoor panels need 5,000-8,000 nits. |
Color Accuracy | Over 16.7 million colors for true visuals. ΔE <3 is best. |
Refresh Rate | High refresh rates (≥1,920Hz) stop flickering and improve video. |
Power Consumption | Less than 400 watts per square meter saves energy. |
Uniformity | 95-99% brightness consistency across the panel. |
Contrast Ratio | 3,000:1 to 5,000:1 for clear screens. |
Warranty | Good warranty means reliable support. |
You can also check test reports and real-life examples. Panels rated for 50,000+ hours last longer. 24/7 technical support helps fix problems quickly.
Tip: Always match the panel specs to the room’s needs and lighting conditions.
Brand and Quality (Guangdong Liyinled Lighting Co.,Ltd)
Picking a trusted brand is very important. Guangdong Liyinled Lighting Co.,Ltd makes ultra-slim recessed and surface-mounted LED panel lights. Their products get high ratings and offer great value.
Brand | Product Type | Price Range | Rating |
|---|---|---|---|
Guangdong Liyinled Lighting Co., Ltd. | Ultra Slim Recessed Surface Mounted LED Panel Lights | $1.07 - $1.25 | 4.8/5 |
Liyinled’s factory uses advanced machines and strict checks. They offer options you can customize and fast support. You can look at their LED Panel Light models for different spaces and styles.
Compatible Controllers and Accessories
Matching controllers and accessories is needed for smooth use. You should check if the panels work with smart controllers, dimmers, and mounting kits. Here are some tips:
Pick controllers that support app or voice control.
Use mounting kits that fit the panel’s size and shape.
Choose accessories from the same brand for easy setup.
Note: Guangdong Liyinled Lighting Co.,Ltd provides compatible accessories and expert advice for seamless integration.
You can visit the Liyinled website to find more products and support.
Install LED Panels: Preparation
Getting ready to install LED panels is important. You need to check the area first. Gather all the tools you will need. Make sure everything is safe before starting. This guide helps anyone who wants to install LED panels at home or work.
Tools and Materials
You need the right tools for every installation. The tools make the job easier and safer. Choose tools based on how you will mount the panels. Here are some tools most people use:
Measuring tape
Pencil or marker
Screwdriver set
Wire strippers
Wire connectors
Drill
Level
Voltage tester
Ladder or step stool
Different ways to install need special materials. The table below shows what you need for each method:
Installation Type | Required Materials |
|---|---|
Recessed Mounting | Ceiling grid holds the panel inside the ceiling |
Surface Mounted | Surface mounting kit keeps the panel on ceiling or wall |
Suspended | Suspension kits hang panels at the right height |
Guangdong Liyinled Lighting Co.,Ltd uses advanced machines in their factory. Their LED Panel Light models come with kits for each installation type. The factory checks every product for quality and safety.
Tip: Always check your tools and materials before you start installing.
Site Requirements and Safety
Getting the site ready is very important. You must look at the space and follow safety rules. Here are steps to help you:
Look at the space. Measure the room and check ceiling height. Find obstacles like beams or ducts.
Think about lighting needs. Decide if you want task lighting, accent lighting, or to save energy.
Check the wiring and voltage. Make sure the site fits the LED wall installation.
Look at the conditions. Check temperature, moisture, and exposure, especially for outdoor jobs.
For government or control rooms, make sure panels meet TAA-compliant requirements.
Safety standards are important. The table below shows common certifications:
Certification | Description |
|---|---|
VDE | Meets European safety and quality standards |
DLC | Energy efficiency and performance for commercial lighting |
UL | Electrical safety and fire resistance |
ENERGY STAR | Energy-efficient products with reduced consumption |
Note: Always follow local codes and check certifications before you start installing.
Power and Connectivity
Power and connectivity are important for installing LED panels. You must check the wiring and make sure panels connect well. Some problems can happen during installation:
Challenge | Causes | Solutions |
|---|---|---|
Flickering Lights | Loose connections, wrong dimmer switches, voltage changes | Do regular maintenance, check connections, use right dimmers, keep voltage steady |
Dim Lighting | Wrong wattage, dirty fixtures, voltage problems | Use correct wattage, clean fixtures, check voltage, move fixtures if needed |
Use a voltage tester to check the power supply. Make sure the wiring matches the panel’s needs. If the site has smart controls, test the connection before finishing.
Tip: Preparing the site well helps stop problems and keeps panels working longer.
Guangdong Liyinled Lighting Co.,Ltd gives expert help for installing LED panels. Their products work with many smart systems and have clear instructions. You can visit their LED Panel Light page for more information.
LED Panel Light Installation Steps
Installing LED panel lights can seem tricky, but anyone can follow these steps and get great results. Guangdong Liyinled Lighting Co.,Ltd makes the process easy with clear instructions and quality products. Their factory uses advanced machines and strict checks to make sure every panel works well. You can find more about their LED Panel Light models and factory on their website.
Unboxing and Inspection
He or she should start with careful unboxing. These steps help avoid problems later:
Open the box and check for all parts. Look for the LED driver, power sheet, IC rate label, dimming guide, color-coded spring clips, and packaging box.
Compare each item with the manufacturer's checklist. Missing parts can cause trouble during led panel light installation.
Make sure the panel meets certifications like VDE, DLC, UL, and ENERGY STAR. These show the product is safe and efficient.
Inspect the panel for scratches, dents, or cracks. If there is any damage, document it right away to protect the warranty.
Tip: Careful inspection at this stage prevents headaches during led panel installation.
Mounting and Assembly
Mounting is one of the key installation techniques. The steps change depending on whether the panel is recessed or surface-mounted.
For recessed installation, he or she should:
Measure the ceiling grid and mark the spot.
Fit the panel into the grid and secure it with spring clips.
Make sure the panel sits flush for a neat look.
For surface installation, the steps are:
Use the mounting kit from Guangdong Liyinled Lighting Co.,Ltd.
Mark the ceiling or wall and drill holes.
Attach the mounting frame and fix the panel onto it.
Check that the panel is level and tight.
Note: Always follow the instructions for the specific model, like APL-PB-2508E-Recessed or APL-PB-2508E-Surface.
Electrical Wiring and Testing
Safety comes first during wiring. These steps help keep the process safe and smooth:
Turn off power at the circuit breaker before starting.
Use proper tools to avoid short circuits.
Wear insulating gloves and other protective gear.
Connect the wires according to the color codes and the guide from Guangdong Liyinled Lighting Co.,Ltd.
Follow local building codes for all wiring.
After wiring, he or she should test the panel:
Look for loose connections, burn marks, or damage.
Power on the panel and check for flickering or dim spots.
Regular inspections and maintenance help keep the panel working well.
Tip: Testing right after installation helps catch problems early.
Calibration and Final Checks
Final steps make sure the panel works at its best. Here is a table with important steps:
Step | Description |
|---|---|
1 | Secure the panels to prevent movement and damage. |
2 | Calibrate for color accuracy, aiming for ≤3% brightness deviation and Delta E ≤2. |
3 | Adjust PWM frequency to avoid flicker, usually between 1,800-3,200Hz. |
4 | Fine-tune RGB gain/offset values in 0.1% increments. |
5 | Run a 72-hour stress test with 4K HDR content at full brightness. |
6 | Watch for luminance decay over 5% or color shift over 0.005 Δu’v’. |
He or she should also:
Inspect the mounting and wiring.
Power on the panel for a first look.
Check for dead pixels, color distortion, or flicker.
Display test patterns to spot any issues.
Callout: These steps help optimize performance and keep the panel looking great.
Anyone can follow these steps for led panel light installation and get reliable, bright lighting. Guangdong Liyinled Lighting Co.,Ltd offers expert support and quality products for every project.
Troubleshooting and Common Issues
Installation Problems
Sometimes people have trouble when putting in LED wall panels. These problems can slow things down or make the panels not work well. The table below lists common problems and ways to fix them:
Installation Problem | Troubleshooting Steps |
|---|---|
Signal and Connectivity Problems | Check all wires and cables. Make sure they are not broken. You might need to get a better graphics card or change software settings. |
Panel Performance and Calibration Issues | Fix or swap out panels that do not work. Calibrate often to keep colors the same. |
Environmental and Power Considerations | Make the air move better or add cooling fans. Ask an electrician to look for power problems. |
You can stop many problems by following the instructions from Guangdong Liyinled Lighting Co.,Ltd. Their LED Panel Light products have easy guides and support.
Display and Connectivity Issues
Problems with display and connections can happen even after you finish installing. These issues might look like flickering, dead pixels, or colors that are wrong. The chart below shows how often these problems happen:

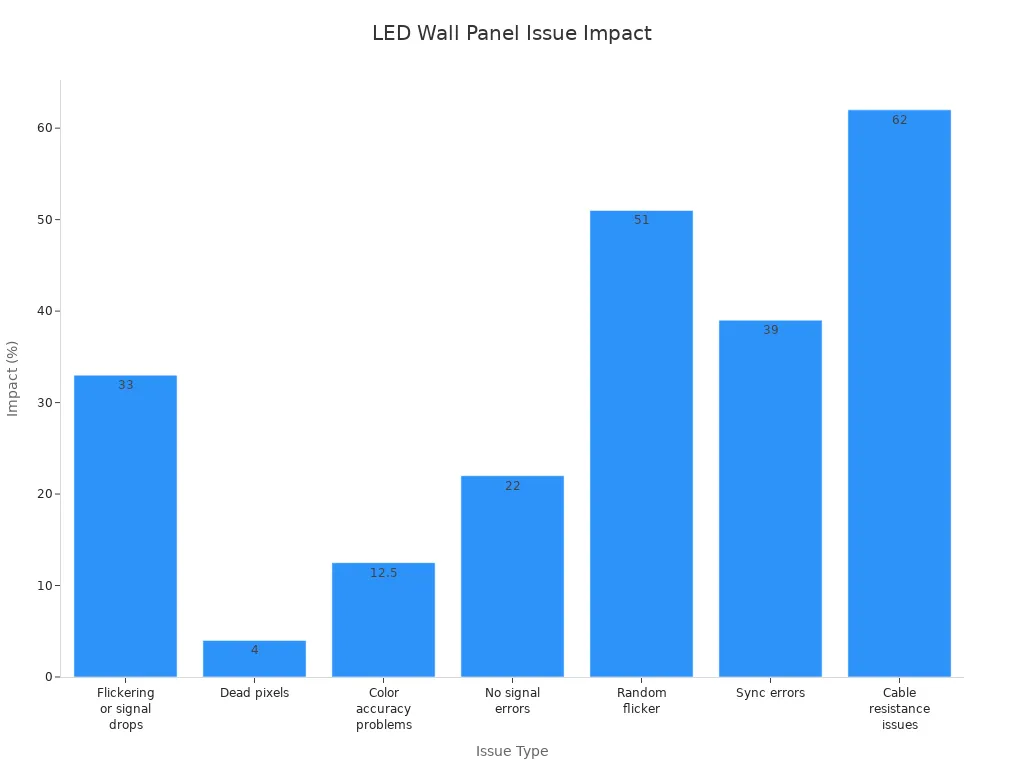

Here is a table with common problems and how to fix them:
Issue | Resolution Steps |
|---|---|
Flickering or signal drops | Look at the cables and settings. Change the refresh rate to 60Hz. |
Dead pixels | Try to fix them. Check if the problem is from the factory. |
Color accuracy problems | Change the display settings. This only takes a few minutes. |
No signal errors | Switch HDMI cables. Test the wall outlets for power. |
Random flicker | Plug the panels right into the wall, not into a power strip. |
Sync errors | Use DisplayPort 1.4 instead of HDMI 2.1 for better refresh rates. |
Cable resistance issues | Use thick copper cables (22AWG or bigger) to lower resistance. |
Tip: Guangdong Liyinled Lighting Co.,Ltd checks every panel in their factory to help stop these problems.
When to Seek Professional Help
Sometimes you need an expert. If you need to do electrical work, put panels on walls, or set up the system, call a pro. Experts know how to line up and adjust panels so colors look good and pictures are clear. They also make sure the panels are safe and all wires are tight.
Trying to fix hard problems alone can be dangerous or break things more. Guangdong Liyinled Lighting Co.,Ltd gives expert help and advice for their LED Panel Light products. Their team can help with setup, repairs, and upgrades, so your project goes well.
Note: If you are not sure, ask a trained technician for help. This keeps your LED wall safe and bright.
Panelling with LED Lights: Maintenance Tips
Cleaning and Care
Regular cleaning keeps led panel lights bright and clear. He or she should start by looking at all panels for dark spots or damage. Checking cable connections helps prevent flickering. Dust can build up fast, so wiping the lights with a soft, dry cloth every three to six months works best. Using lint-free cloths protects the surface. For tough dirt, manufacturer-approved solutions help without harming the lights. Air filtration systems also cut down on dust. Weekly checks make sure the cooling system stays clean and the electrical parts stay safe.
Tip: Always turn off the power before cleaning or touching any lights.
The team at Guangdong Liyinled Lighting Co.,Ltd uses advanced machines in their factory to make surface mounted led panel lights and other models. Their products last longer with simple care. For more details, visit their LED Panel Light page.
Maintenance Task | Frequency | Notes |
|---|---|---|
Regular cleaning | Every 3-6 months | Use a soft, dry cloth to prevent scratches. |
Inspect electrical connections | Every 3-6 months | Loose wires can cause flickering or failure. |
Use airtight fixtures | As needed | Protects LEDs in high humidity or dust environments. |
Software Updates
Keeping led panel lights up to date helps them work better. He or she should check for new software or firmware when setting up an led wall. Updates fix bugs and add new features. Most companies release updates as needed. Installing these updates keeps the lights running smoothly and helps with color and brightness control.
Task | Frequency |
|---|---|
Firmware/Software Update | As Released |
Note: Always follow the instructions from the manufacturer when updating software.
Maximizing Lifespan
He or she can make led panel lights last longer with a few smart steps. Turning off the lights during long breaks reduces heat and stress. Running pixel tests every month finds problems early. Cleaning vents and screens every few months stops dust from blocking airflow. Installing a surge protector keeps the lights safe from power spikes. For outdoor panelling with led lights, waterproof wiring and strong seals keep out moisture. Checking seals and testing the lights often helps catch issues before they get worse.
Leave 4-6 inches of space around the lights for airflow.
Use cooling fans and keep the lights out of direct sunlight.
Pick climate-controlled rooms or use dehumidifiers for humid places.
Always use weatherproof wiring for outdoor panels.
Ask a professional for help with setup and repairs.
Tip: Good maintenance means fewer repairs and brighter lights for years.
Guangdong Liyinled Lighting Co.,Ltd builds strong, reliable led panel lights in their factory. Their surface mounted led panel lights work well in many places. For more information, check their LED Panel Light page.
Picking the right led wall means you need to look at different led panels. You also have to check the wall space and think about safety. It helps to use a checklist for electrical needs, rules, and getting ready to install. The table below lists important steps for led video walls and led display projects:
Step | What to Do |
|---|---|
Inspect the wall | Look at the space and height for the panel |
Gather components | Make sure all types fit and work together |
Plan for safety | Follow safety rules and do regular checks |
Guangdong Liyinled Lighting Co.,Ltd makes good led video walls and led display products. Their factory uses smart machines to build every panel. If the wall setup is hard, people should ask experts or go to the official website for help.
FAQ
What makes a led wall different from regular led panels?
A led wall uses many led panels to create a large display. He or she can show videos, pictures, or graphics. Regular led panels light up rooms, but a led wall grabs attention in public spaces.
How does someone install a led wall from LiYinLed factory?
He or she starts by checking the site. The LiYinLed factory provides clear instructions and kits for mounting. Visit LiYinLed LED Panel Light for details. The led wall fits many spaces and works with smart controls.
Can led wall panels work in outdoor areas?
Yes, led wall panels from LiYinLed factory handle outdoor conditions. He or she should use waterproof wiring and seals. Outdoor led walls need strong panels and weatherproof features. Check LiYinLed Outdoor LED Panels for options.
How often should someone clean a led wall?
He or she should clean the led wall every three to six months. Dust and dirt can block the led lights. Use a soft cloth and check connections. Regular care keeps the led wall bright and clear.
What should someone do if a led wall shows flickering or dead pixels?
He or she should check cables and power. Try changing the refresh rate. If the led wall still flickers, contact LiYinLed factory support. Visit LiYinLed Support for help. Quick fixes keep the led wall working.
