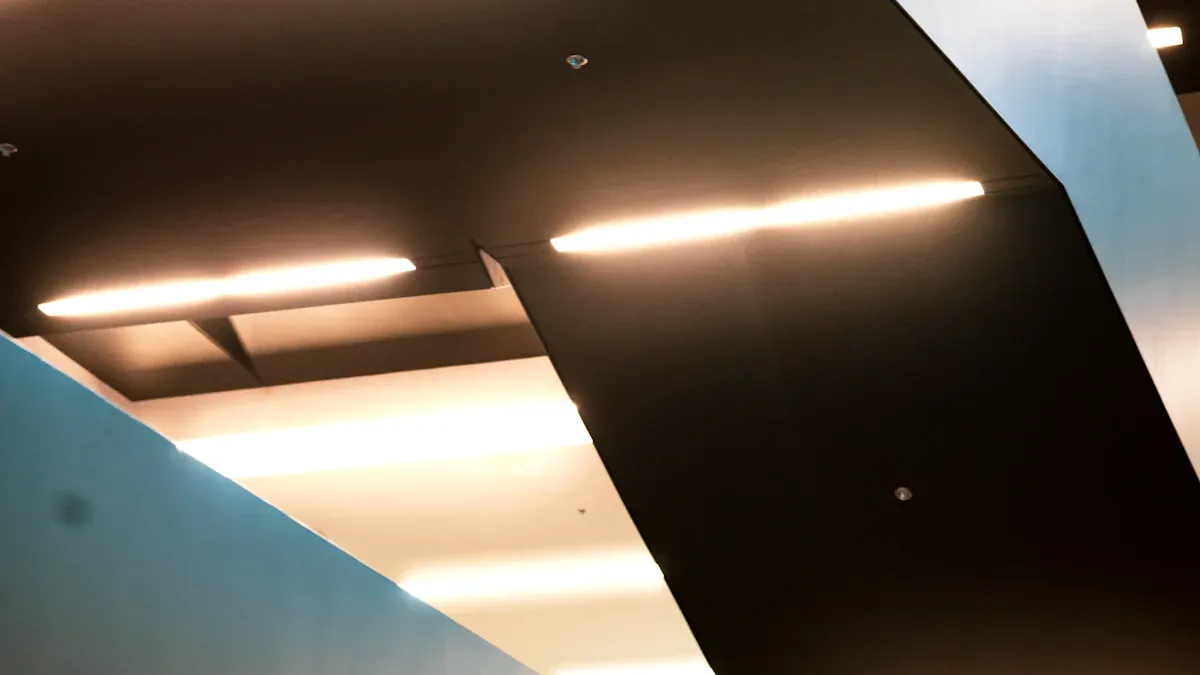

Grille Linear Spotlight Explained: Design, Structure and Applications
A Grille Linear Spotlight combines a smooth straight frame with hidden spotlight lenses in one light fixture. This smart design offers great eye comfort along with focused light. Built-in louver baffles block harsh glare well to protect your eyes. Modern work spaces need strong lighting that uses very little power. For instance, an LED linear luminaire uses 50% less energy than a fluorescent downlight.
Liyinled makes advanced Driver-on-Board parts to improve modern indoor spaces. Driver-on-Board technology fully removes large outside power supply boxes. Small shapes fit neatly into hidden ceiling tracks. Building planners easily get steady heat control, neat looks, and great light quality.
Key Takeaways
Grille linear spotlights mix direct lighting with built-in covers to protect your eyes from bright light.
Driver-on-Board technology takes away large outside power supply boxes to make ceiling setup quick and simple.
Strong aluminum frames draw heat away from the inside parts to help the lights last longer.
Changeable cover panels let you easily switch between soft wall lighting and focused spotlighting.
These high-efficiency LED designs cut total energy use by 50% compared to traditional fluorescent lights.
Understanding the Grille Linear Spotlight
Definition and Optical Concept
A Grille Linear Spotlight places hidden LED lights inside a small metal frame. This smart fixture shines light straight down with high precision. Liyinled builds the APL-GL-01 model to offer smooth, clean style for modern indoor rooms. The light assembly uses special lenses alongside built-in louver grids. This smart structure projects neat light beams onto target walls without unwanted glare or wasted light spill.
The APL-GL-01 fixture uses Driver-on-Board tech to boost overall working reliability. This design builds the driver system right onto the metal circuit board. Removing outer power boxes creates very thin light shapes and speeds up mounting inside small spaces. Getting rid of high-frequency switches stops all electrical interference. The driver avoids weak capacitors, which greatly extends total electronic lifespan.
Driver Architecture Advantage | Performance Metric |
|---|---|
Wiring Failure Reduction | Connection failures drop by 40% |
Thermal Resistance | Improves from 8°C/W to 5.2°C/W |
Assembly Speed | Enables 75% faster installation |
Operating Lifespan | Increases to 50,000+ hours |
The Anti-Glare Baffle Advantage
Louver baffles shield the inner LED lights to control beam direction effectively. The solid baffle wall blocks bright direct rays from hitting a person's eye. Cell depth and grid spacing control the final glare rating of this modern light. Deep louver cells block bad light bounces, preventing harsh reflections on shiny desks, floors, and digital screens.
The solid louver grid forms an exact visual blocking angle for people nearby. Office workers get great viewing comfort under direct overhead lights. The built-in Driver-on-Board layout cools internal hotspot heat by up to 15°C inside the small light chamber. The fixture keeps a solid power factor above 0.95 and shields against 4KV-6KV power spikes. Liyinled provides this trustworthy glare-free light to safeguard eye health in work spaces.

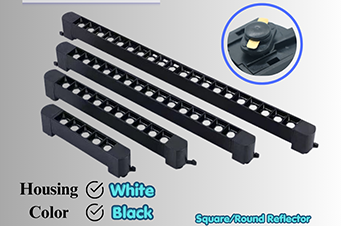

Structural Anatomy and Key Components
Strong metal builds shield modern LED lights from outside pressure and internal heat. Liyinled makes the APL-GL-01 recessed light series with tough metals to keep light quality steady over long periods. Durable designs protect delicate electrical parts and keep the fixtures working safely inside fancy ceiling systems. Engineers line up every outer piece perfectly so the light fits right and runs without stopping.
Die-Cast Aluminum Thermal Management
A die-cast aluminum frame makes up the main body and primary cooling system of the fixture. This heavy metal body pulls harmful heat right off the inner LED chips and releases it into the air. Trapped heat inside ceiling lights lowers brightness, changes light color, and breaks down electronic parts much faster. Good cooling shields internal electronics from heat damage during long work shifts. The stiff metal frame also adds great strength, exact shape fitting, and shaking protection in office ceilings.
Engineers pick special aluminum metals to speed up cooling and boost outer frame strength. The table below shows heat moving details for common aluminum metals used in light manufacturing:
Property | Die-Cast Aluminum (A380 / ADC12 / A413) |
|---|---|
Thermal Conductivity Range | 92–121 W/(m·K) depending on alloy |
Typical Junction Temperature (Tj) at 150W, 40°C ambient | 72–82°C |
Best Alloy Selection | A380 (general commercial), ADC12/A383 (thin-wall/smart housings), A413 (high-power thermal priority) |
Fast heat movement stops hot spots from forming near chip connection points. The metal frame spreads warmth evenly across outer cooling fins to touch more surrounding air. Great heat loss keeps inner parts cool and protects the frame against heat wear over time. Keeping chip heat low shields driver parts, stops brightness loss, and ensures long light life inside shallow ceiling spaces.
Optical Modules and Diffusers
The light system guides light rays to give clean, comfy light where you need it. Custom-shaped lenses gather light straight from inner LEDs and focus it into neat downward beams. Liyinled builds the APL-GL-01 model with a smart light engine that reaches a high energy rating of 100LM/W. High power efficiency cuts overall energy use while providing bright light in busy work spaces.
Light designers pick between two specialized cover panels to create custom light patterns:
Smooth light panels create soft, even brightness across walls and floors. These smooth covers remove hard beam lines to create gentle wall lighting without annoying dark spots.
Prismatic light panels bend individual light rays using tiny plastic shapes. These patterned covers control wide light angles while softening surface glare for better eye comfort.
These swappable covers give lighting designers great choices for modern indoor projects. Work crews easily set up fixtures for soft wall lighting, focused spot lighting, or balanced room lighting in office buildings. The flexible frame makes changing cover panels quick and simple during normal repairs. Smart light control boosts room style while keeping eyes comfortable for workers all day long.
Architectural Design and Mounting Options
Designers pick linear lighting fixtures to form neat visual lines inside modern spaces. Changing room plans need flexible setup choices that work with diverse ceiling types.
Recessed Ceiling Integration
Recessed setups hide the light fixture body right inside drywall or drop ceilings. Workers trim exact openings to set the fixture shell straight into the ceiling level. A borderless trim forms a seamless link between metal pieces and ceiling boards. Viewers notice only the slim light gap from the floor space below. This simple setup keeps the upper room ceiling flat and smooth.
Small frame shapes solve tight setup problems in narrow upper ceiling spaces. The Liyinled APL-GL-01 series uses Driver-on-Board tech to remove big separate driver parts. This all-in-one system cuts the total fixture depth by a wide margin. Service workers slide these thin parts quickly into small upper cavities. The hidden setup keeps room height open across modern offices and bright retail halls.
Surface and Pendant Flexibility
Surface mounting offers a smart option for hard concrete decks and solid ceilings. Fitters attach the metal casing onto flat ceiling faces without cutting wide slots. A solid metal body hides inner power wires neatly against the main top ceiling. Building owners keep total ceiling strength in solid concrete while adding strong direct light.
Hanging wire mounts drop useful light down into tall high-ceiling spaces. Thin steel cables lower the linear spotlight closer toward working desks below. Installers tune cable heights easily to line up fixtures over work tables or store products. Hanging cables make high rooms feel warm and brightly lit without losing strong lighting power.
Versatile mounting parts easily match changing floor plans across busy business spaces. Work teams change mounting types quickly during indoor room updates. Liyinled provides tough mounting parts that handle different building settings. Lighting designers easily set these modern fixtures inside shopping stores, art halls, and office spaces.

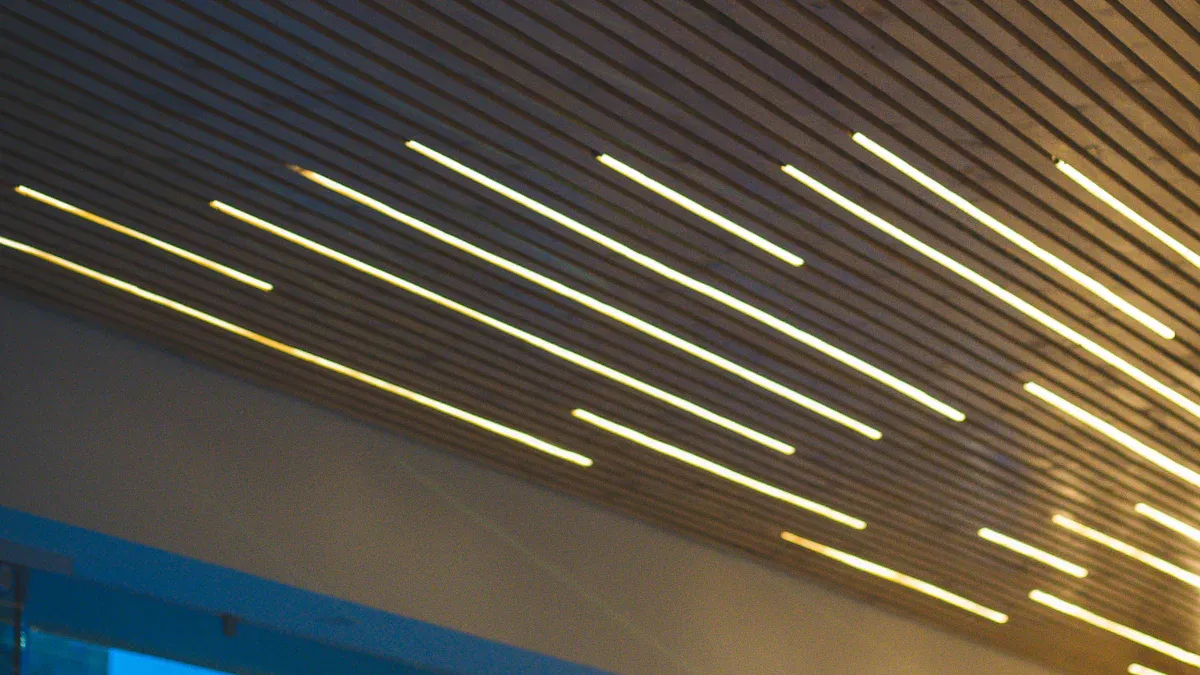

Grille Linear Spotlight Applications
Commercial Offices and Workspaces
Modern offices need steady, comfortable downward lighting for daily job tasks. A Grille Linear Spotlight shines glare-free light over open desks, meeting tables, and computer spots. Deep louver baffles block direct light rays to keep bright glare out of worker eyes. Employees read paper files and look at computer screens easily without getting tired or seeing harsh light reflections. Good downward lighting makes a bright, cozy space for all-day reading and typing tasks.
Building managers use hidden linear fixtures to keep modern ceiling spaces looking neat and clean. Built-in Driver-on-Board tech removes big power boxes from small spaces inside low ceilings. The tiny light frame creates clean, straight lines inside open office floors, hallways, and large conference rooms. Smooth downward light makes big office areas look sharp, bright, and clear. High energy efficiency keeps power bills low while lighting up work areas brightly.
Retail, Galleries, and Hospitality
Stores, high-end shops, and art galleries need exact spotlighting to show off products and fancy art. The Liyinled APL-GL-01 works well as a strip wall washer to bring out cool wall textures. Designers shine bright light beams straight onto featured artwork, display walls, and store items. Strong light contrast draws customer eyes right to special products on display. Bright wall lighting shows off fine details on items, creating a fun shopping experience for everyone.
Hotels, reception desks, and restaurants use adaptable linear lights to create cozy, gentle background lighting. Swappable smooth or prismatic covers let light designers change how light spreads across different room shapes. Designers create soft light paths along stone feature walls, wood panels, and decorative plaster. Guests enjoy warm, welcoming spaces that show off rich building materials without hurting their eyes.
Key Technical Selection Criteria
Beam Angles and Optics
Engineers pick beam angles based on what a room needs. Narrow light beams draw attention to art, store models, and key product displays. Wide light beams spread even brightness over large wall areas. The Liyinled APL-GL-01 line uses special hidden lenses with built-in anti-glare louver grids. These fine light parts push brightness straight to target spots while blocking harsh side glare from worker eyes.
Choosing the right light cover changes visual comfort and surface glow. Light designers use smooth cover panels to create soft, even wall lighting. Prismatic cover panels bend light rays to cut strong reflections on shiny desks, glass tops, and screens. The Grille Linear Spotlight keeps a high energy output of 100LM/W through these smart light parts. Designers get exact beam control without losing power efficiency or light quality.
Color Temperature and Control
Color choices change how modern indoor spaces look and feel. Warm light tones make cozy moods in hotel front desks, lounges, and luxury spaces. Neutral and cool white light helps workers see better, read easily, and focus on office floors. Quality built-in LED parts keep colors matching evenly over long years of use. Good color picks highlight building details and show off true surface textures in display areas. Steady color quality keeps art and store goods looking accurate.
Smart driver parts simplify power control and lighting setups. Driver-on-Board tech removes large power boxes, making control wiring simple inside low ceiling spaces. Building teams connect these hidden linear lights right to automatic dimmer switches and main control systems. Easy light adjustments help managers balance electric light with natural sunlight during the day. Built-in surge guards protect delicate electronics from power spikes, offering steady long-term use in business spaces. This smart setup cuts repair costs over long work schedules.
Grille linear spotlight fixtures unite durable die-cast aluminum construction with flexible optical performance. Modern commercial spaces benefit from deep anti-glare louver baffles and adaptable mounting options. The Liyinled APL-GL-01 model improves interior illumination through compact Driver-on-Board architecture. This high-efficiency system delivers a steady 100LM/W luminous output while protecting eye comfort. Recessed linear frames integrate smoothly into flat ceilings across offices, retail showrooms, and art galleries.
Designers easily customize light distribution patterns using swappable smooth or prismatic diffusion panels for unique layout requirements. Architects and specifiers should contact Liyinled today to receive tailored product advice and professional lighting customization for upcoming architectural projects.
FAQ
What scenarios are best suited for the Liyinled APL-GL-01 grille linear spotlight?
Modern business offices, store display rooms, art galleries, and hotel spaces get top results from this fixture. The Liyinled APL-GL-01 works great as a focused spotlight or narrow wall washer. It lights up textured walls, building details, and sale goods while staying very easy on the eyes.
What key factors do buyers consider most when purchasing a grille linear spotlight?
Planners look closely at light glare control, heat strength, and total energy output. Buyers want lights with low glare to keep eyes comfortable. They also look for strong die-cast aluminum frames for cooling, built-in Driver-on-Board parts, and high 100LM/W efficiency to save money.
How does Driver-on-Board (DOB) technology improve fixture installation and performance?
Driver-on-Board tech places the power driver right on the LED circuit board. This setup gets rid of big separate driver boxes. Because of this, the small fixture slides into shallow ceiling spaces without trouble. The simple layout speeds up setup, cuts heat buildup, and provides steady long-term use in busy spaces.
How do different diffusion panels customize light distribution?
Light designers pick smooth or prismatic cover panels to match their space goals. Smooth panels make soft, even light across wide wall areas. Prismatic panels split individual light beams. This effect cuts harsh glare and removes bright reflections on shiny office desks, glass tables, and computer screens.
