IP Rating Explained: Choosing Waterproof LED High Bay Lights

Choosing a waterproof LED high bay light starts with the IP rating. For most wet or dusty indoor areas, IP65 gives enough protection. IP66 or IP67 works for hose-down, washdown, and outdoor use. Moisture and dust make lights fail early in warehouses, food plants, and canopies. IP stands for Ingress Protection. It follows international standard IEC 60529, not a marketing label. This post helps readers pick the right rating for their environment. Buyers avoid paying too much for unneeded protection or risking too little protection. Liyin offers high bay fixtures across many IP levels. The LED UFO High Bay Light APL-UFO-05 is one example of a flexible choice for waterproof LED high bay lights.

Key Takeaways

• IP ratings show dust and water protection levels for LED high bay lights.

• Match the IP rating to your space: IP40 for dry areas, IP65 for damp, IP66/IP67 for washdown, IP69K for harsh cleaning.

• Higher IP ratings cost more and may reduce airflow or service access.

• Check gasket material, housing quality, and IEC 60529 test reports for real protection.

• Confirm the warranty covers water or dust damage before you buy.

What An IP Rating Tells You

IP means Ingress Protection. The International Electrotechnical Commission created this system under IEC 60529. The code uses the letters "IP" followed by two digits. Each digit matches a certain lab test. The first digit covers solids. The second digit covers liquids. A higher number is not always better. The rating has to match the real environment. A fixture with a rating that is too high may cost more and give you fewer service options.

First Digit: Solids And Dust

The first digit shows protection against solid objects and contact with dangerous parts. The scale goes from zero to six. Each level matches a certain test under IEC 60529.

A rating of 6 means the device is fully dust-proof. Dust protection becomes a yes-or-no thing at level 6. A fixture either becomes fully dust-tight or it does not.

Second Digit: Water And Moisture

The second digit shows protection against water. The scale goes from zero to nine. Each level reflects a different test condition.

The difference between IPX5 and IPX6 is big. IPX5 uses a 6.3 mm nozzle at 12.5 L/min. IPX6 uses a 12.5 mm nozzle at 100 L/min. Both tests run for 3 minutes from 2.5 to 3 meters. A washdown area with high-pressure spray needs the higher rating.

Common IP Ratings For Waterproof LED High Bay Lights

Different places need different levels of protection. Buyers should match the IP rating to the real conditions the fixture will face. A rating that is too low causes early failure. A rating that is too high adds cost without real benefit.

IP40, IP65, And IP66 Compared

IP40 works for dry, dusty indoor warehouses with no water exposure. These spaces have dust from packaging or cardboard. No moisture threatens the fixture. An IP40 rating handles that dust level fine.

IP65 means the fixture is dust-tight and protected against water jets from any direction. This rating is the practical outdoor minimum for most applications. A covered walkway or parking deck rarely needs more than IP65. Industry guidelines confirm this approach.

For semi-outdoor environments such as gas-station canopies, covered walkways, and parking decks, IP54 is considered acceptable, IP65 is comfortable, and any rating above IP65 is usually unnecessary unless the area is routinely power-washed.

IP66 steps up to powerful water jets. A facility that hoses down equipment regularly needs this level. The test for IP66 uses a larger nozzle and much higher flow rate than IP65. Washdown areas in food plants often specify IP66 for this reason.

IP67, IP68, And IP69K For Harsh Sites

IP67 adds temporary immersion protection. The fixture survives being underwater at one meter for 30 minutes. Some industrial sites require this level.

IP68 goes further with continuous immersion under conditions the manufacturer specifies. Few high bay applications need this level. IP69K handles high-pressure, high-temperature cleaning. Food processing plants use IP69K fixtures for poultry and meat processing, cold storage, and food service areas. These fixtures feature easy-clean, crevice-free construction to reduce bacterial growth risks. Car wash facilities also specify IP69K because of the intense spray and chemicals.

Higher ratings bring trade-offs. A more sealed fixture costs more to produce. The tight enclosure can reduce airflow, which affects thermal management. Service access may become harder when seals are more complex. Buyers should weigh these factors against the actual cleaning protocols and environmental risks at their site.

Choosing Waterproof LED High Bay Lights By Environment

To choose the right light, follow a simple set of steps. First, check how much dust is in the space. Second, see how much water hits the area. Third, look at how you clean the area. Fourth, decide if it's indoors or outdoors. Each answer helps pick the right IP rating.

Dust, Water Pressure, And Cleaning Protocols

A dry warehouse with just cardboard dust only needs IP40. A food plant that gets washed every day needs IP66 or more. A car wash that uses high-pressure hot spray needs IP69K. How you clean the space often matters more than where it is.

Think about a place that hoses down equipment every night. The spray hits lights from below and the sides. A light with IP65 can handle light jets. But a powerful washdown with a big nozzle and high flow needs IP66. The test is very different: IPX5 uses a 6.3 mm nozzle at 12.5 L/min, while IPX6 uses a 12.5 mm nozzle at 100 L/min.

Industrial areas need IP67 lights with special coatings to stop rust from moisture. Seaports and oil rigs are examples. Salt air wears down regular metal housings over time.

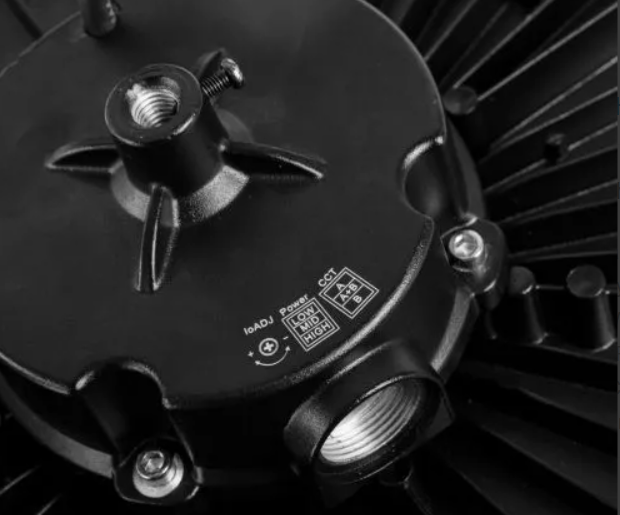

The Liyin LED UFO High Bay Light APL-UFO-05 is a good example to compare specs. This slim light has 4KV surge protection. Its anodized aluminum body also works as a heatsink. Buyers can see how good the build supports the IP rating.

Temperature, Condensation, And Outdoor Exposure

Heat can damage seals over time. Heat can break down rubber gaskets, silicone seals, cable insulation, cable glands, plastic connectors, and polycarbonate lenses. When the seal system gets hard, cracks, or changes shape, dust and water get inside the light. The original IP rating is not enough if gaskets, cable glands, or lens seals cannot stay stable in long-term heat.

Buyers should check several things before buying. Does the IP rating work at the stated operating temperature? What material is the gasket? Does the cable entry handle the heat? Can the light handle repeated heating and cooling? Will condensation form when the light is off?

Outdoor lights face extra problems. Temperature changes pull moisture into sealed units. A light that runs hot during the day and cools at night creates pressure changes inside. Over months, this cycle pulls water vapor inside.

All outdoor connections should use IP68 waterproof connectors and have drains or vents to stop condensation inside sealed units.

IP65 or IP66 may be needed in hot areas with dust, steam, or washdown. The rating alone does not promise performance. The seal system must hold up under real conditions.

Liyin makes waterproof LED high bay lights for warehouses, factories, and tall ceilings. The factory builds each light with an anodized aluminum body for strength and heat control. This build helps long-term use in tough spots. A common question from buyers: which model works for a covered outdoor canopy that gets rain sometimes? The APL-UFO-05 works well in that case when used with proper connectors. For full washdown, a higher-rated model is a better pick.

Beyond The Rating: Seals, Testing, And Warranty

Seals And Housing Quality

The IP number alone does not guarantee a waterproof fixture. Gasket material, housing construction, and lens sealing often matter as much as the rating itself. A rubber gasket that hardens under UV light or high heat will let moisture inside within months. A polycarbonate lens that warps from temperature swings creates gaps around the edges. The housing must keep seals compressed evenly through years of thermal expansion and contraction. A cheap housing flexes under load, which breaks the seal over time.

Liyin builds the LED UFO High Bay Light APL-UFO-05 with an anodized aluminum chassis. This material resists corrosion and handles thermal load well. The chassis doubles as a heatsink, keeping internal temperatures lower. Cooler internal temperatures mean less stress on gaskets and seals. Proper thermal management directly extends seal life. Buyers should ask suppliers what gasket material they use. They should also confirm whether the lens uses a compression gasket or just adhesive. These details determine real-world performance more than the printed IP number.

Spec Sheet And Warranty Checks

Every spec sheet should reference IEC 60529 testing. Self-declared IP ratings often fail in real conditions. Buyers must demand the actual test report from an accredited lab.

Demand an IEC 60529 IP test report from an accredited lab. In-house "self-declared" IP ratings are not worth the PDF they're printed on. We've had suppliers claim IP66 while using cable glands that leak at the first pressure-wash cycle.

The table below shows key standards to cross-check when validating an LED supplier product spec.

Buyers should also check whether the warranty covers water or dust ingress. Some warranties exclude environmental damage explicitly. A fixture with a strong IP rating and a solid warranty gives real protection. The APL-UFO-05 from Liyin combines a durable anodized aluminum chassis with tested performance for demanding sites. Any facility choosing Waterproof LED High Bay Lights should verify both the test report and the warranty terms. Without these checks, a fixture rated IP66 may fail within a year of washdown exposure.

Pick the IP rating that fits the real place where the light will go. IP40 works for dry, dusty warehouses. IP65 covers most indoor wet or dusty areas and is the least you need outdoors. IP66 or IP67 takes care of hose-down and washdown. IP68 or IP69K is only for full underwater use or very harsh cleaning. Paying for the highest number just wastes money. The right rating keeps the fixture safe and saves your budget.

Look at Liyin's high bay lineup, like the LED UFO High Bay Light APL-UFO-05. Check the IP rating against how the place is cleaned and what it is exposed to before you buy. These Waterproof LED High Bay Lights work well when buyers match the rating to the job.

FAQ

What IP rating does a high bay light need in a dry warehouse?

A dry warehouse with cardboard or packaging dust needs IP40. No water exposure occurs in this space. The first digit of 4 blocks solid objects larger than 1mm. Buyers save money by avoiding a higher rating they do not need.

Can an IP65 high bay light handle outdoor rain?

Yes. IP65 means the fixture is dust-tight and resists water jets from any direction. This rating is the practical outdoor minimum for covered walkways, canopies, and parking decks. A facility that power-washes equipment should step up to IP66 or IP67.

Which IP rating suits a food processing plant?

Food plants that use high-pressure, high-temperature cleaning need IP69K. This rating handles intense spray and chemicals. The crevice-free construction also reduces bacterial growth risks. Car wash facilities often specify the same rating for the same reasons.

Does a higher IP rating always mean a better light?

No. A higher rating can raise cost and reduce airflow or service access. The right rating matches the real environment. Buyers should check gasket material, housing quality, and the IEC 60529 test report instead of chasing the biggest number.

What should buyers check beyond the IP number?

Buyers should confirm the fixture passed IEC 60529 testing at an accredited lab. They should also check whether the warranty covers water or dust ingress. Gasket material and housing construction often matter as much as the printed rating.

Where does Liyin build its high bay lights, and what scenarios suit the APL-UFO-05?

Liyin runs its own factory and makes fixtures like the LED UFO High Bay Light APL-UFO-05 with an anodized aluminum chassis that also works as a heatsink. The slim 30mm DOB design, 4KV surge protection, and 100W/150W/200W options fit warehouses, factories, and high-ceiling spaces. For a real example, a food processing client needed washdown-rated fixtures for its packaging hall. Liyin's team matched the IP rating to the daily cleaning protocol, and the fixtures have run without water ingress issues since installation.

| Scenario | Suggested Rating | | | |
